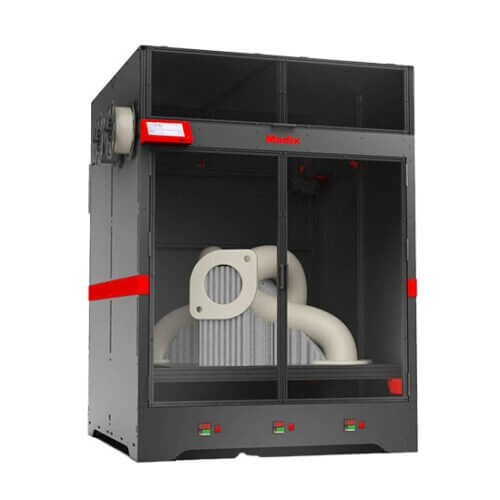

Modix BIG Meter

  • – DIY self-assembly kit
  • – Print Volume: 1010 x 1010 x 1010 mm
  • – Printer Dimensions: 1300 x 1470 x 1830 mm
  • – Shipping Weight: 200kg
  • – Included: Dual print head, E3D Aero & Volcano 1.75mm
  • – Reprap Firmware developed and supported by Duet3D
  • – 7 inch touchscreen made by Duet3D
  • – E3D Titan Aero extruder with E3D Volcano hotend
  • – Automatic bed tilt calibration
  • – Power Requirements: 32A, single phase, 208-240V
modix big meter
$13,500Modix
Request a Quote

With the Modix BIG Meter, you are now able to manufacture objects as large as 980 x 1000 x 1000 mm in one go!

Modix BIG Meter specifications

  • Company: Modix
  • Application: Mold Making, Prototyping, Research and Development, Restoration
  • Industry: Art, Automotive, Construction, Consumer products, Education, Sign and graphics
  • Technology: FFF FDM
  • Printer type: Large scale, Filament deposition
  • Year: 2020
  • Assembly: DIY Kit

Materials

  • Materials: PLA , PETG, PVA, ABS, ASA, PC, Nylon, TPU/TPE, Woodfil, Copolyester, Corbon composite
  • Material system: Open material system
  • Print size metric: 980 x 1000 x 1000 mm
  • Print size imperial: 38.5 x 39.3 x 39.3 inches

Properties

  • Diameter: 1.75 mm
  • Layer thickness: 40 - 800 Microns
  • XYZ accuracy: 4 x 10 x 0.5 Micron
  • Closed print chamber: Yes, fully enclosed
  • Feeder system: Direct
  • Extruder: Dual
  • Max. extruder temp.: 572 °F / 300 °C
  • Print bed details: Heated bed, PEI surface
  • Max. bed temp.: 248 °F / 120 °C
  • Bed leveling: Fully automatic
  • Display: LCD
  • Connectivity: SD card, USB cable. WIFI is optional
  • Camera: Optional

Requirements

  • Slicing: Cura, Simplify3D, Slic3r

Dimensions (XYZ) & weight

  • Dimensions metric: 1300 x 1470 x 1830 mm
  • Dimensions imperial: 51.2 x 57.9 x 72.0 inches
